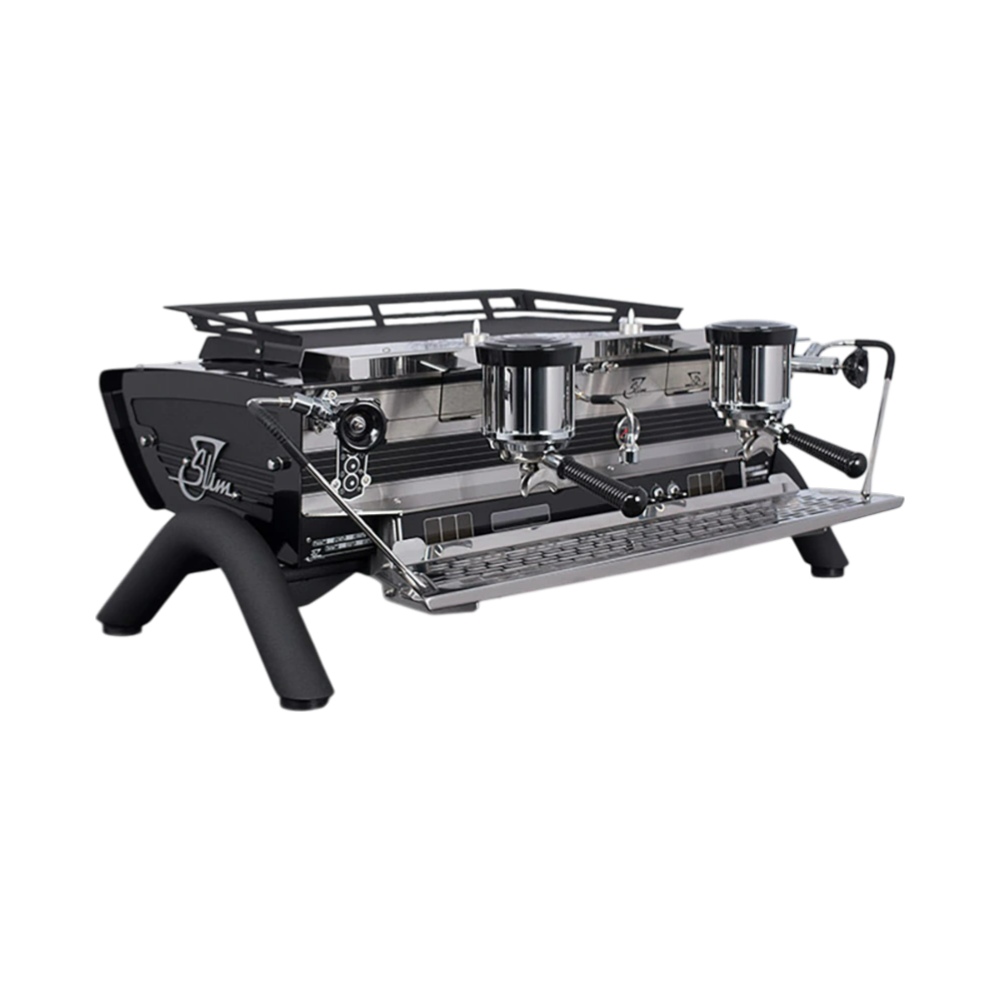

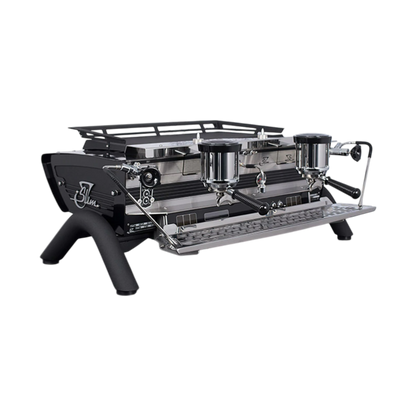

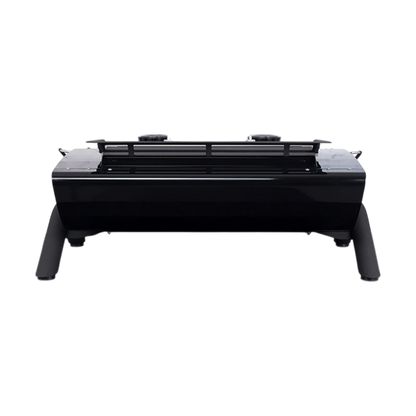

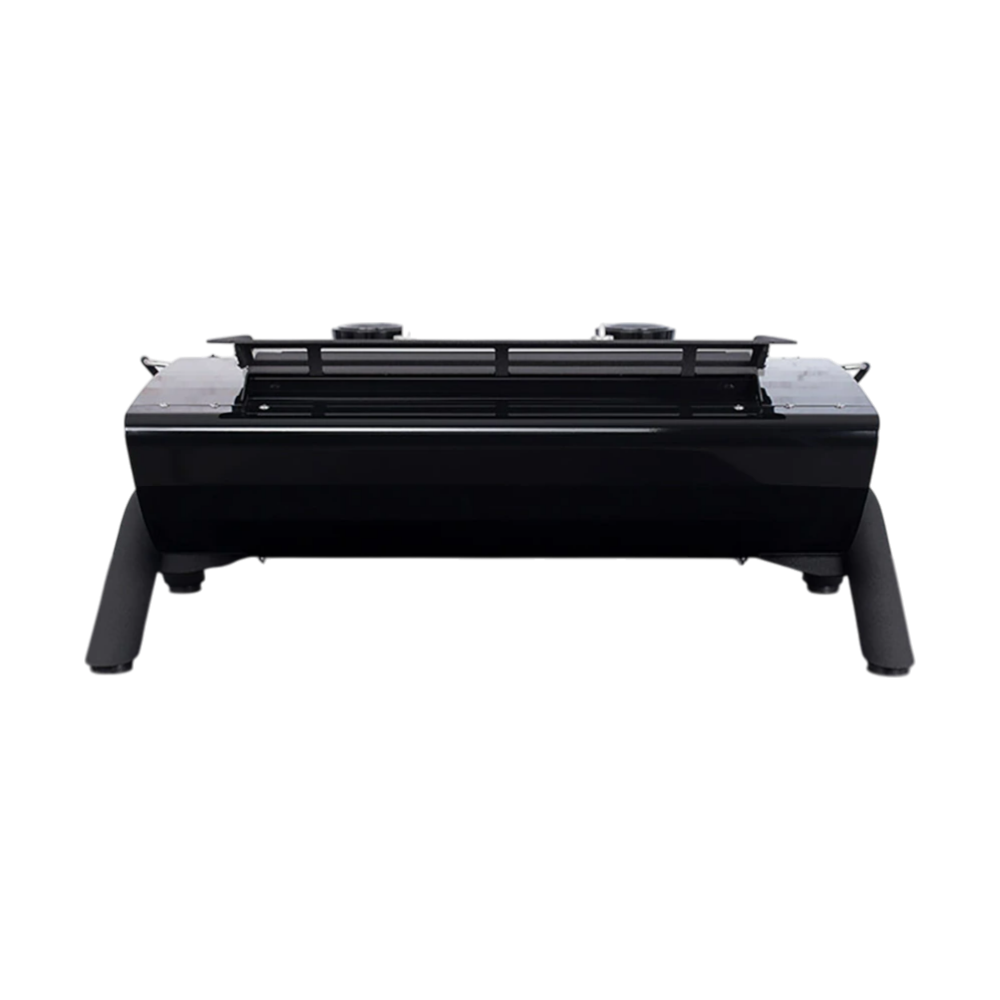

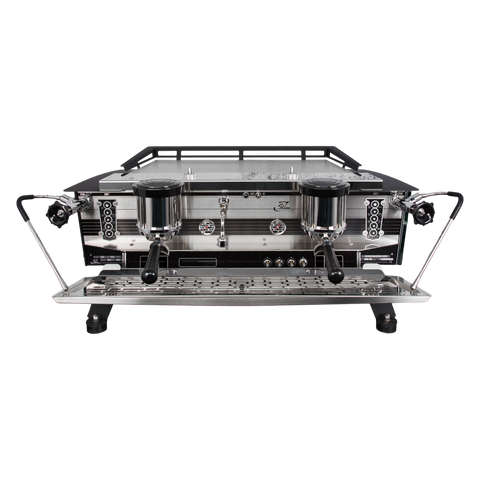

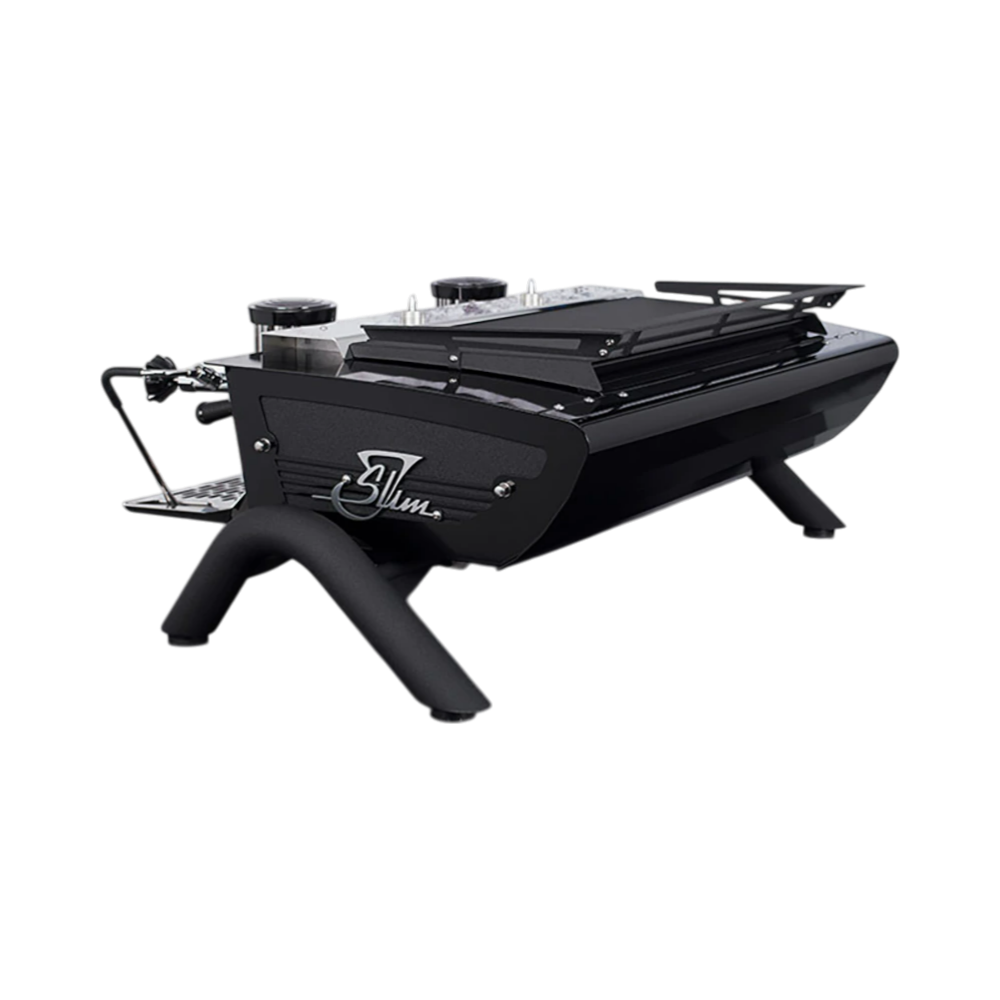

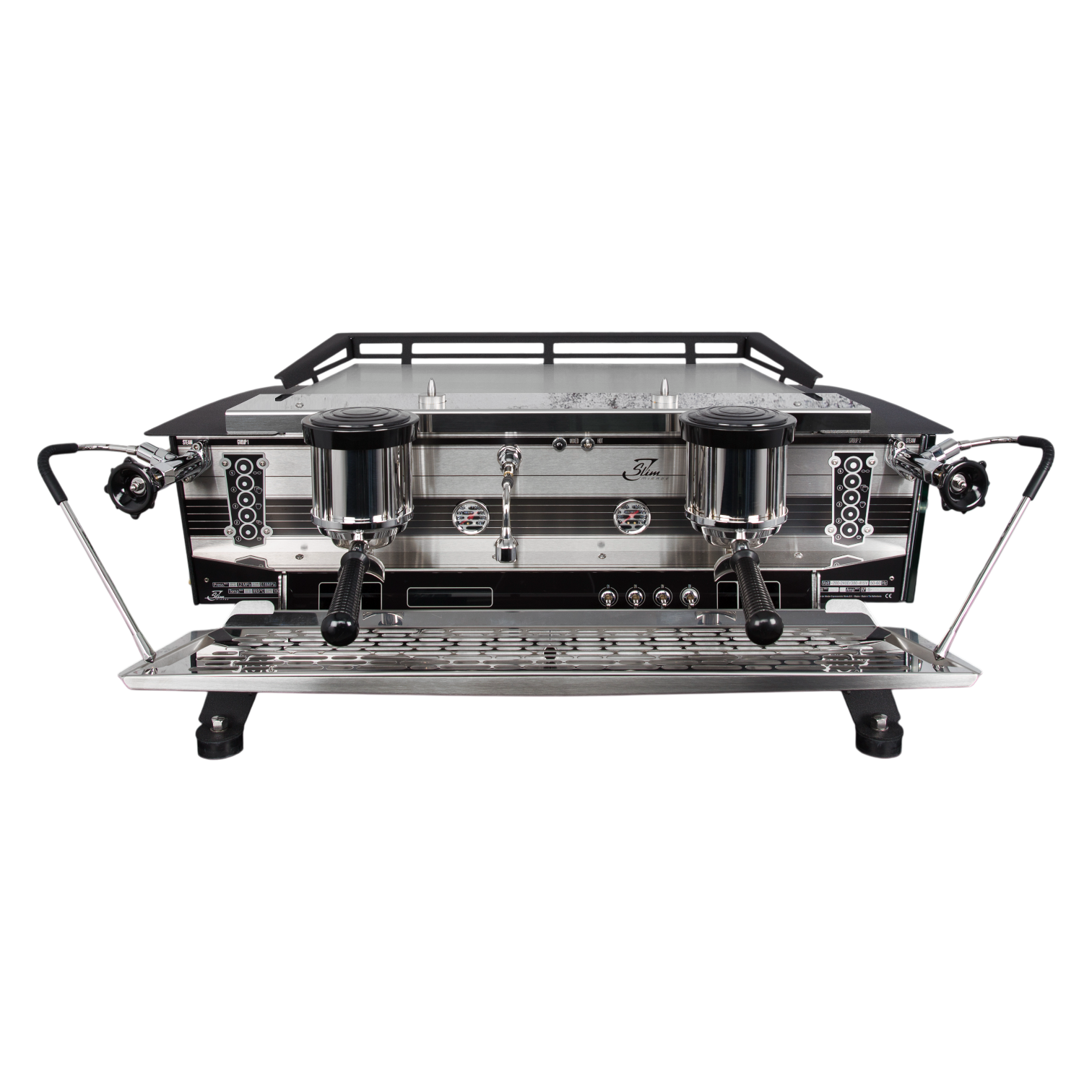

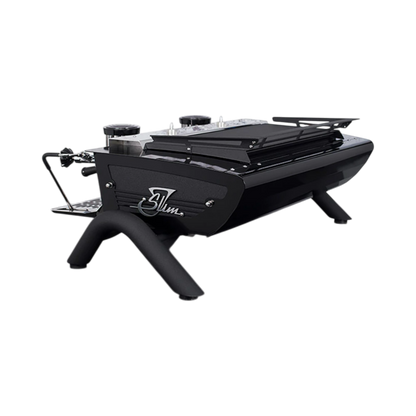

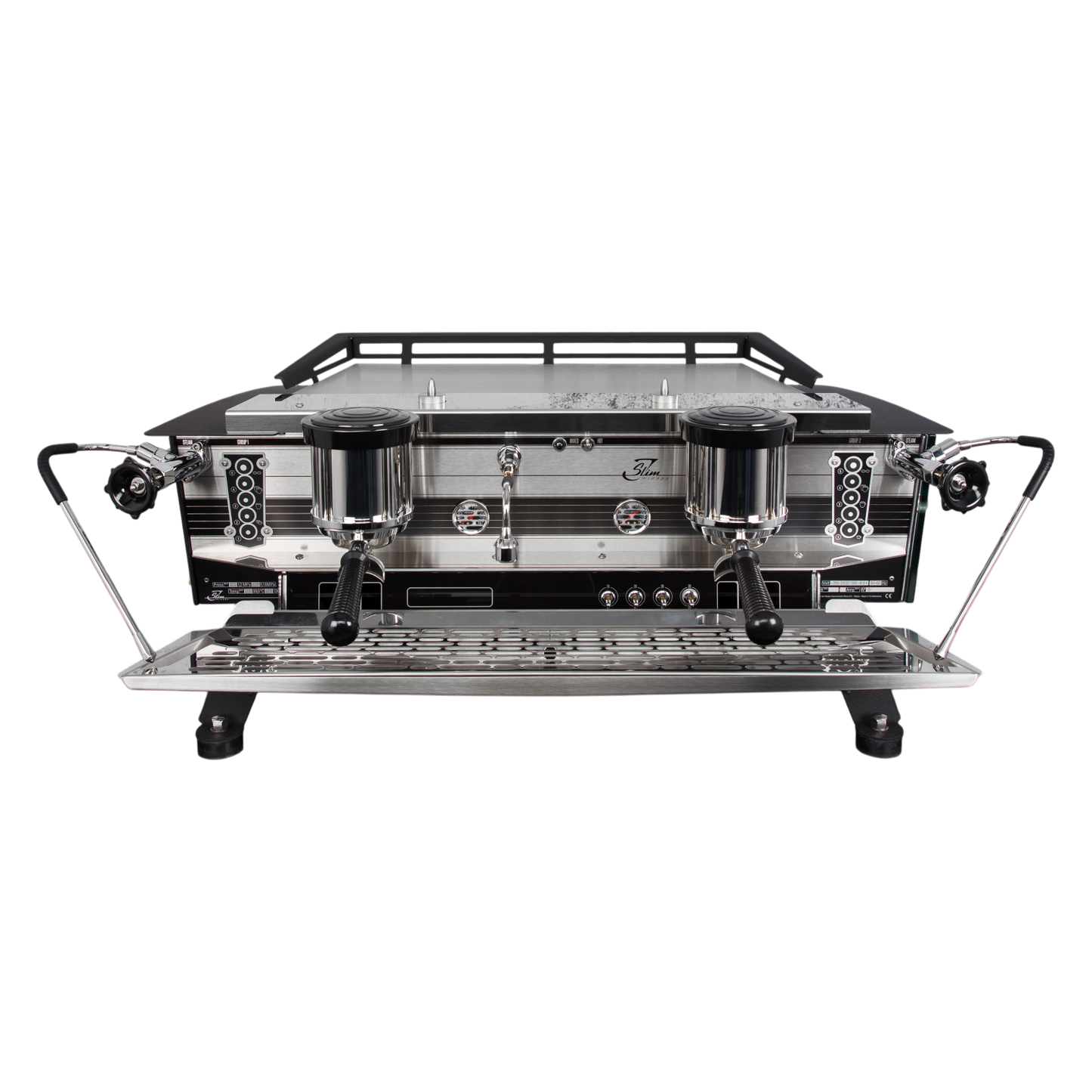

Kees Slim Jim Espresso Machine - 2 Group

Kees Slim Jim Espresso Machine - 2 Group

Submit Details For Quote

close form

Specifications & Details

ELECTRIC MAINS

Kees van der Westen Slim Jim

DIMENSIONS
Approximate dimensions and footprints of the Slim Jim are shown in the illustrations. The black circles are the anti-vibration feet. Please note the dimensions are the same for the Duette and Triplette.

The optimal countertop feedthrough is 60mm (2.4″). Note that the steam wands will protrude a few centimeters on the left and right side.

WEIGHT
The countertop should provide a solid base to carry the full weight of the machine: roughly 125kg for both the Duette and Triplette.

NOTES
Water supply from a water treatment system should be within 1.5m (5ft) of the machine. The water supply hose that comes with the machine has a half ball at the end of the 3/8″ nut connector. Discharge should not be further away than 1.5m, have an internal diameter of at least 32mm (1″ 3/8) and should be fitted with a trap. There must be space nearby to locate the water pump with its electrical motor.

Product Overview

TOUCHPAD
Each group can be activated with 4 easily programmed volumetric buttons, or a continuous flow button.

Multi Boiler Espresso Machine Slim Jim

BASTONE
Each group is activated by one of our custom “Bastones”, a small lever which offers two programmable volumetric settings and, via a pushbutton, a continuous flow.

The Bastone can also be programmed for full manual control.

Kees van der Westen SlimJim Bastone

FLIP – FLOP STEAM VALVE
Lever activated steam valve, also available as a retrofittable kit.

Professional Espresso Machine Slim Jim

FOOT ACTIVATED STEAM VALVE
Shift efficiency and ergonomics up a gear, and put your foot down to steam.

Our foot-pedal is safe, fast, leaves your hands free and feels like the most natural way to work. Once you try it you never want to go back!

Kees van der Westen Foot Pedal

CUSTOM COLOUR BODY PANELS
The body panels can be coated with a RAL colour of your choice, and in the finish of your choice, smooth or textured, and gloss, silk or matt.

Kees van der Westen Ral Colour

TEMPERATURE CONTROLLER IN FAHRENHEIT
The temperature in all our boilers is controlled by a PID; a self-learning device that keeps the temperature as stable as possible.

Your machine can be delivered with the readout in either degrees Celsius or Fahrenheit.

Kees van der Westen Slim Jim

IVORY COLOURED DETAILS
Group caps, steam valve knobs, filter holder handles & if so equipped Bastone lever knobs made of ivory coloured material.

Kees van der Westen Slim Jim

WOODEN DETAILS
Group caps, steam valve knobs, filter holder handles & if so equipped Bastone lever knobs made of American Oak. Tailor made by Specht Design from ethically sourced A grade wood.

WOODEN DETAILS
Group caps, steam valve knobs, filter holder handles & if so equipped Bastone lever knobs made of American Walnut. Tailor made by Specht Design from ethically sourced A grade wood.
